RTD Measurement Project

Jump to bottom
Enrique Morell edited this page Mar 8, 2021 · 2 revisions

How to Download the latest files? https://1drv.ms/u/s!AljDQF12JgJdla5fc09sdXTIYjPAQA?e=z9V8AF

The project in the above link is more advanced than the one in this repository. The reason I have kept both, is that the repo contains the files used in the beta iteration present in Lithium's machine.

The link has an unrouted version of a four layer board that was going to be used in the next iteration.

Your next step would be to route this four layer board in a way that reduces the amount of vias used and how much crossover you do.

Remember to use the fact that you have 4 layers at your advantage. The idea is that one layer is ground, another is the power (+5V, +12V or Vext depending on where on the project you are).

You will be able to download a zip version of the project and you can open it in Altium.

All the schematics are available in there. They have a hierarchical structure.

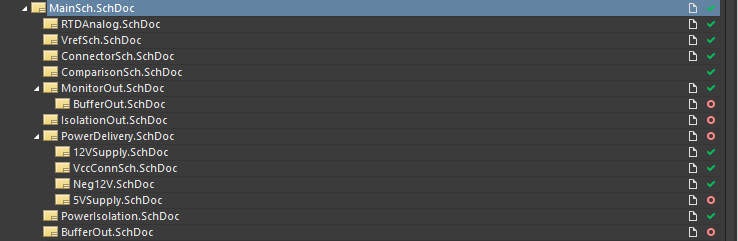

structure of Schematics

The MainSch.SchDoc gives you an overview of the whole project.
